Elbow Joint External Fixator Tibial Femur Annular Ring Fixator

Minimum Order Quantity : 1 pc Price : $660-690
Packaging Details : Non sterilized , PE bag , carton package Delivery Time : 5-15 work days
Payment Terms : L/C, T/T, , D/A, Western Union Supply Ability : 2000pc/month
Place of Origin: Jiangsu ,China Brand Name: Gather
Certification: CE/ISO Model Number: HYL001

Detail Information

Properties: Intervention Equipments Licence Number: CE/ISO13485
Type: Implantation Equipments,External Fixator,Surgical Implant,Implantable Artificial Organs,Contact Artificial Organs Material: PEEK,Stainless Steel/Titanium
Product Name: Distal Radius Orthopedic Small Fragement Modular External Fixator,Orthopedic Device Mini Fragment External Fixator,Humerus Backbone Frame Orthopedic External Fixation,External Fixation External Fixator Usage: Orthopedic Surgery,Bone Fracture Fixation,Orthopedic Implant
Application: Trauma Operation,Medical,orthopedics Transportation: FedEx. DHL.TNT.EMS.etc
Highlight:

Elbow Joint External Fixator

,

Annular Ring External Fixator

,

Tibial Femur External Fixator

Product Description

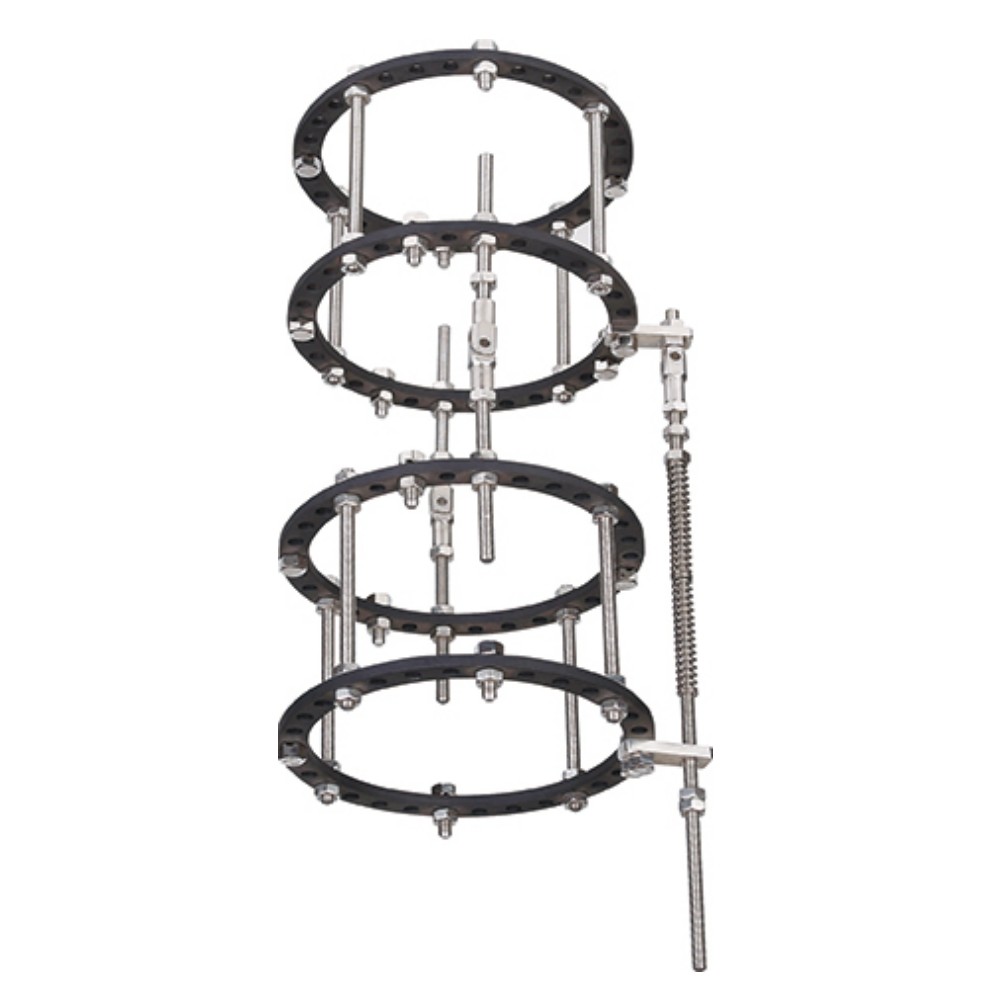

Elbow Joint External Fixator Tibial Femur Annular Ring Fixator 0



Configuratlon:

Rings *6pcs

Annular Diagonal Tie *1pc

Single Joint *2pcs

M6*200 Threaded Rod *8pcs

Pin Clamp *16pcs

2-Hole Connecting Plate *1pc

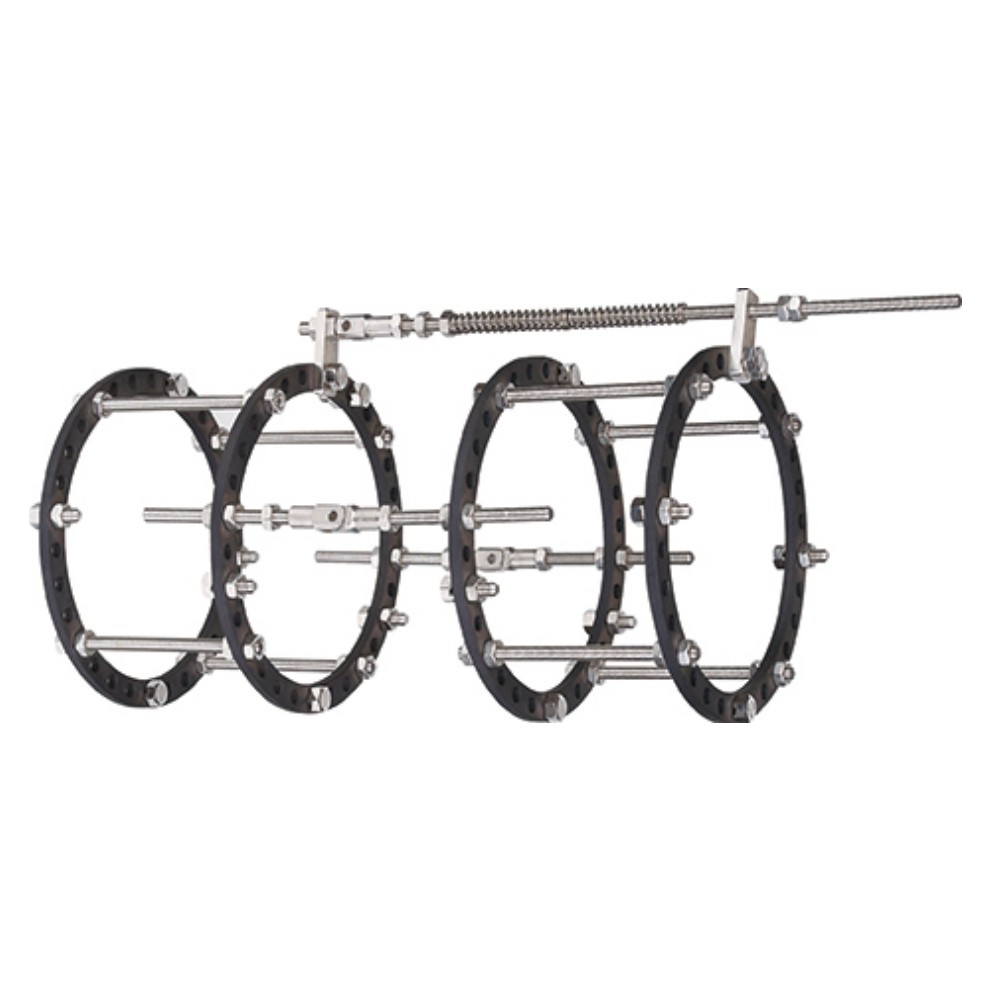

Elbow Joint External Fixator Tibial Femur Annular Ring Fixator 1

Introduction

External fixation continues to be a valuable tool for fracture management and deformity correction providing optimal stability, protection of soft tissue reconstructions, and early mobilization.Traditionally, external fixators have been constructed with a high number of rings, typically composed of metal, adding significant weight to the patient's leg and potentially impeding gate. An all-carbon fiber external fixation system may provide sufficient strength and stability and allow a reduction in the number of components of an external fixator. Metal external fixation may also obscure the visualization of key bone structures such as fractures and the ankle or a tibiotalocalcaneal fusion on both plain radiographs and computed tomography . An all-carbon fiber external fixation system can help mitigate these visual impairments on plain radiographs and CT, as well as provide some compatibility with magnetic resonance imaging.
Clinically, carbon fiber components have been applied to mono-lateral external fixation for many years. Mono-lateral systems are largely considered temporary, and do not offer enhanced weight-bearing, accurate acute or gradual multi-planar deformity correction, or the enhanced off-loading capability of soft tissue reconstructions. However, carbon fiber circular ring external fixation has not been fully accepted due to surgeon unfamiliarity and an unfounded belief of lack of construct strength. Although carbon fiber components have been shown to possess enhanced biomechanical profiles,yet still, external fixation devices with a fully radiolucent carbon fiber circular rings and adjustable variable angle struts have not come into favor in clinical practice. Additionally, the desire for a reduced number of required external fixator metal rings has been trending but has historically not been recommended. In addition to a paucity of data on fully radiolucent circular external fixation, data on constructs composed of radiolucent rings and struts with a limited number of rings is even further limited. We evaluated the utility of radiolucent carbon fiber composite circular external fixation with radiolucent adjustable variable angle struts with a reduced number of rings in patients undergoing orthoplastic intervention in the clinical setting of where in intercalary segmental bone defect has not occurred.

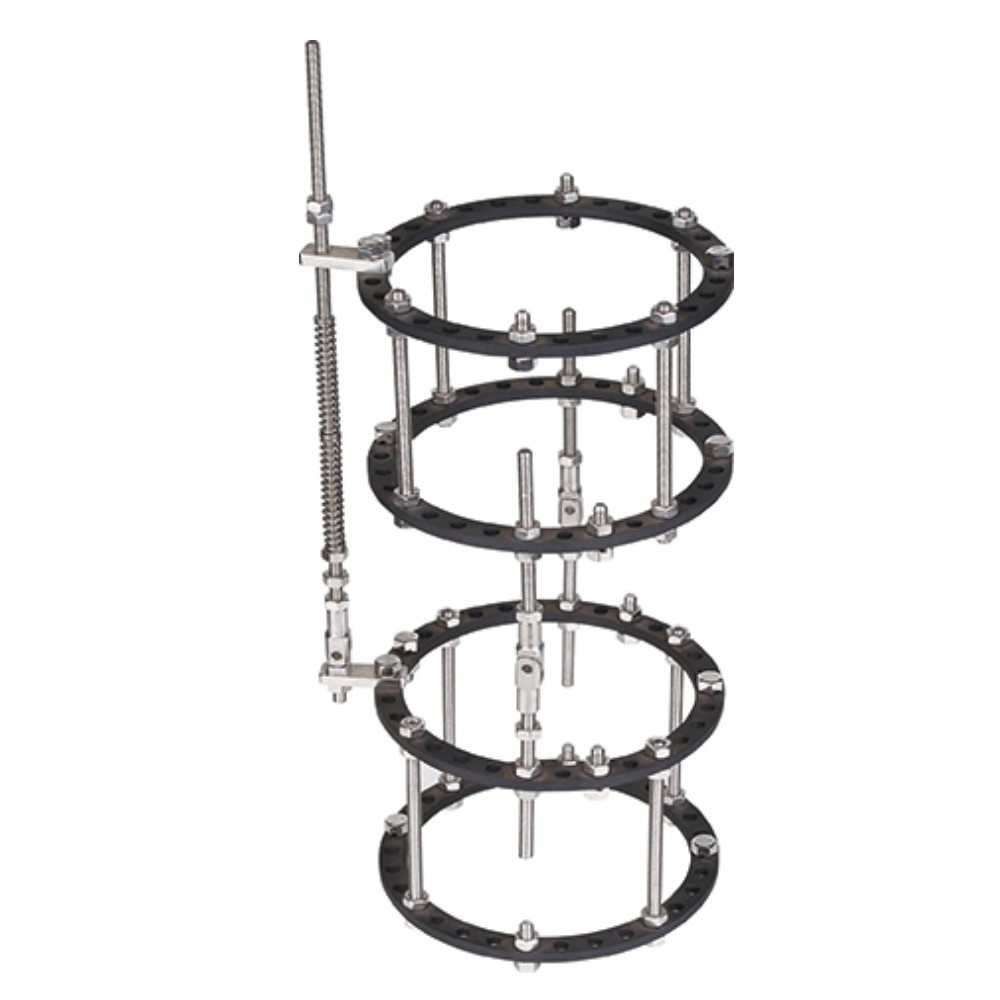

Elbow Joint External Fixator Tibial Femur Annular Ring Fixator 2
