Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant

Minimum Order Quantity : 1 pc Price : $33-45
Packaging Details : Non sterilized , PE bag , carton package Delivery Time : 5-15 work days
Payment Terms : L/C, T/T, , D/A, Western Union Supply Ability : 3000pc/month
Place of Origin: Jiangsu ,China Brand Name: Gather
Certification: CE/ISO Model Number: 3502

Detail Information

Properties: Orthopedic Surgical Instruments,The Basis Of Surgical Instruments,Neurosurgery Instruments Material: Stainless Steel,Medical Aluminum
Application: Orthopedic Instruments,Neurosurgery / Spine Surgery,Large Fragment Instruments,Trauma Operation Color: Silver,Gray
Usage: Orthopedic Implants,Trauma Instruments Set,Medical Surgery,Orthopedic Surgery Name: Orthopedic Surgical Instruments,vascular Surgical Instruments,Kerrison Rongeurs Cervical Spine Instruments,Titanium Cable Instrument Set
Function: Surgery Medical
High Light:

Orthopedic Implant Surgery Plate


Dynamic Compression Fracture Plate


Stainless Steel Fracture Plate

Product Description

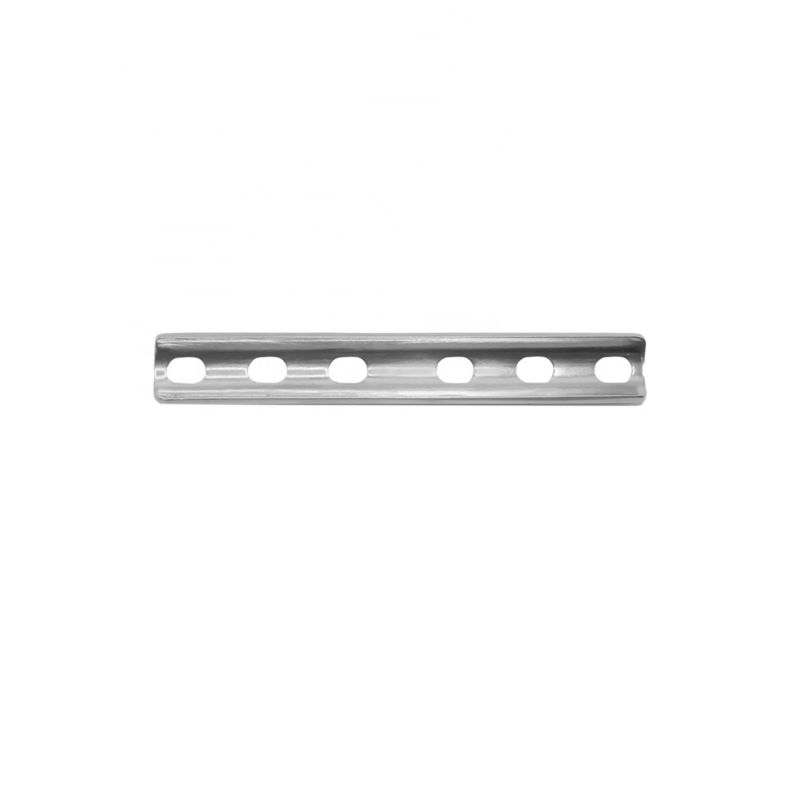

Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant 0



A dynamic compression plate (DCP) is a metallic plate used in orthopedics for internal fixation of bone,typically after fractures. As the name implies, it is designed to exert dynamic pressure between the bone fragments to be transfixed. Dynamic compression is achieved either by attaching a tension device to a plate or by using a special dynamic compression plate. However, compression plating requires a longer surgical incision to allow insertion of the tension device and the possibility of refracture after the plate is removed. A neutralization plate is used to bridge a comminuted fracture; it also transmits bending or torsional forces from the proximal to the distal fragment. Plates used for buttressing prevent collapse by supporting an area of thin cortex or cancellous bone graft.

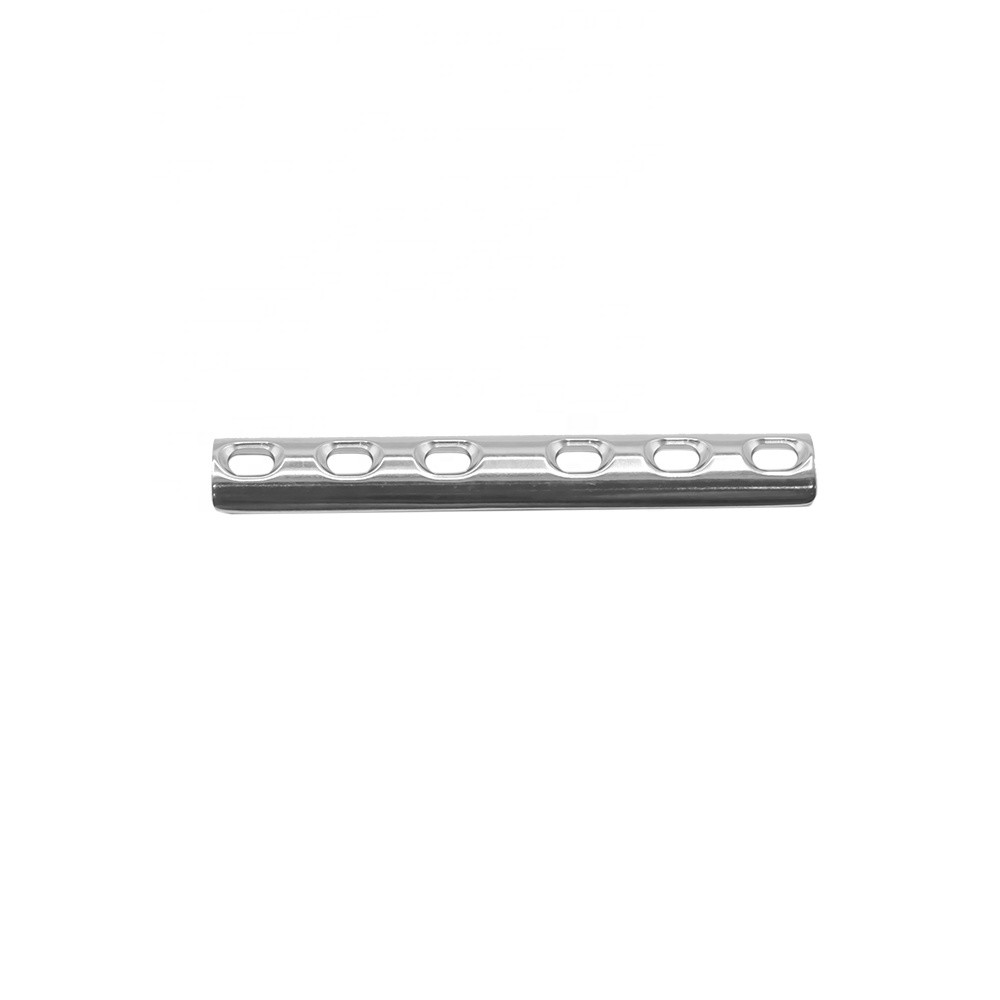

Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant 1Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant 2


Product No. Specification Length * Width * Thickness Material
3502-(A/S)1006 6 Holes 109*14*4.6 Pure Titanium

Stainless Steel
3502-(A/S)1007 7 Holes 125*14*4.6
3502-(A/S)1008 8 Holes 141*14*4.6
3502-(A/S)1009 9 Holes 157*14*4.6
3502-(A/S)1010 10 Holes 173*14*4.6
3502-(A/S)1011 11 Holes 189*14*4.6
3502-(A/S)1012 12 Holes 205*14*4.6
3502-(A/S)1014 14 Holes 237*14*4.6



Stainless Steel Dynamic Compression Fracture Plate Orthopedic Implant 3


  • Narrow Dynamic Compression Plate . These plates are indicated for the fixation of various long bones, such as the humerus, tibia, and femur. These are also used in the fixation of peri-prosthetic fractures, osteopenic bone, and fixation of nonunions or malunions in adult patients.
  • It is particularly used as a tension band plate for the fracture of the humerus and tibia.
  • It is not indicated for fractures of the femur.
  • All holes are designed as self-compressing holes. All the end holes are designed for cancellous bone screws.
  • Indication: As a neutralization and tension band plate on the tibia (not intended for the femur).
