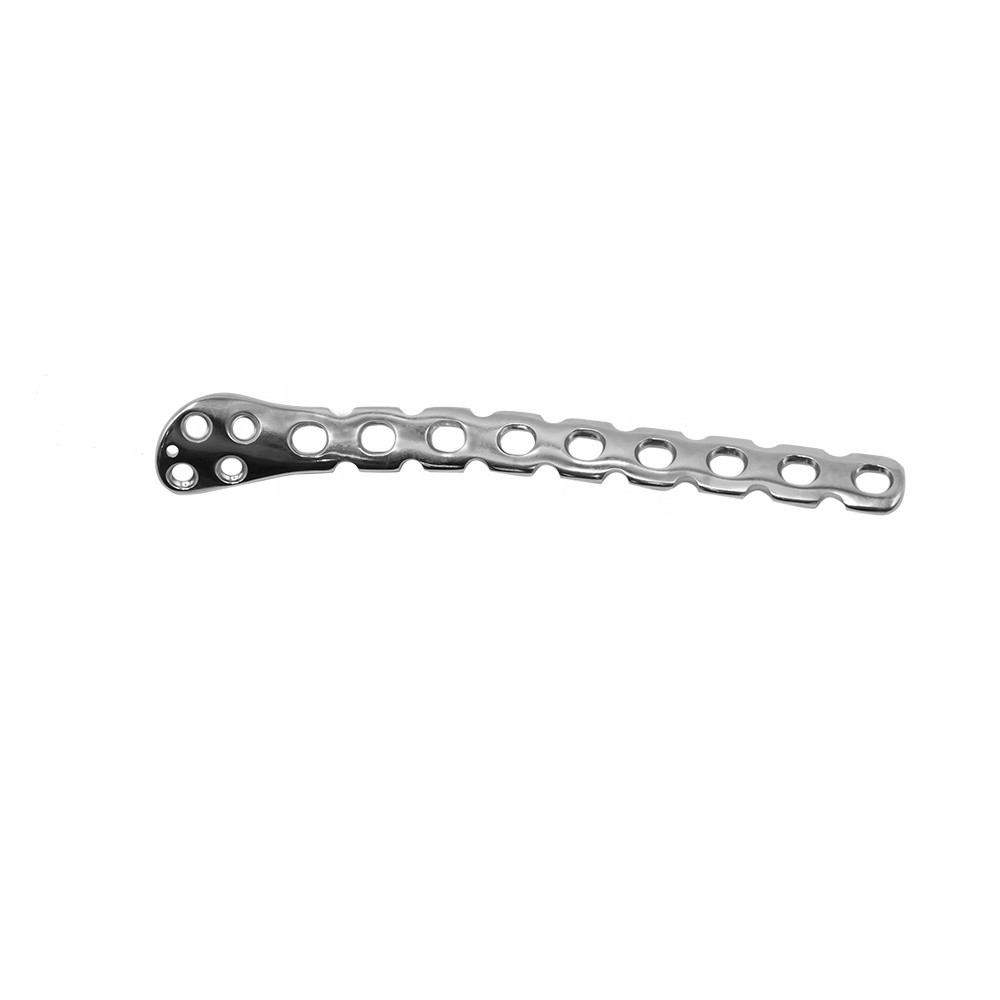

Titanium Phalange Orthopedic Locking Plate Straight L Shaped T Shaped
Contact Person : Luffy Liu
Phone Number : +86-15062512110
WhatsApp : +8615062512110
| Minimum Order Quantity : | 1 pc | Price : | $33-45 |
|---|---|---|---|
| Packaging Details : | Non sterilized , PE bag , carton package | Delivery Time : | 5-15 work days |
| Payment Terms : | L/C, T/T, , D/A, Western Union | Supply Ability : | 3000pc/month |
| Place of Origin: | Jiangsu ,China | Brand Name: | Gather |
|---|---|---|---|
| Certification: | CE/ISO | Model Number: | 3511 |
|
Detail Information |
|||
| Material: | Titanium,Stainless Steel/Titanium,Titanium&Stainless Steel,Titanium & Stainless Steel | Type: | Implantation Equipments,Implantable Artificial Organs,orthopedic Implant |
|---|---|---|---|
| Licence Number: | CE/ISO13485 | Application: | Trauma Operation,Fracture,Distal Radius Medial Locking Plate,Suitable For Fractures Of The Proximal End Of The Humerus,Fractures & Osteotomies |
| Color: | Red Etc,silver | Product Name: | LCP Plate,orthopedic Implants,Pelvic Curved Type Reconstruction Locking Plates,trauma Implant |
| Usage: | Orthopedic Surgery,Surgical Room,For Fixing Fractures,Orthopedic Implant,Proximal Humerus Or Fractures Of The Humerus | Transportation: | FedEx. DHL.TNT.EMS.etc,Express/Air |
| Size: | 5/7/9/11/13holes Left&Right,Left & Right,Normal | Name: | Tibial Narrow Locking Plate,locking Plate System Instrument Set |
| High Light: | Orthopedic Implant Plate,Distal Tibial Lateral Fracture Reconstruction Plate,Titanium Reconstruction Plate |
||
Product Description
Introduction:
Reconstruction plates have been traditionally used in fractures of bones with complex 3-D geometry such as the pelvis and distal humerus.
In the distal humerus, the advent of modern precontoured anatomical periarticular locking plates has superseded the use of reconstruction plates. The following information regarding the application of reconstruction plates is only applicable to situations where more modern plates are not available.
| Product No. | Specification | Length * Width * Thickness | Material |
| 3511-(A/S)1005(L/R) | 5 Holes | 121*17*3.2 | Pure Titanium Stainless Steel |
| 3511-(A/S)1007(L/R) | 7 Holes | 157*17*3.2 | |
| 3511-(A/S)1009(L/R) | 9 Holes | 193*17*3.2 | |
| 3511-(A/S)1011(L/R) | 11 Holes | 229*17*3.2 |
Usage scenario:
The plate should extend distally enough to engage all articular fracture fragments and proximally enough so that three cortical screws engage both cortices of the proximal (shaft) fragment.
Select a plate long enough so that the resulting construct respects the principle of balanced fixation. This includes considerations of screw type, screw density and direction, and plate working length.
Use malleable templates to facilitate contouring.
Contour the plate with bending pliers and/or a bending press to fit the distal humerus anatomy.
Place a medial plate on the medial supracondylar ridge and usually slightly posteriorly on top of the soft tissues.
Place a lateral plate directly lateral and usually slightly posteriorly on top of the soft tissues.
Place a dorsolateral plate posteriorly on the lateral column on top of the soft tissues.
Compression plating (medial and lateral plating):
When there is bone contact between the articular and proximal fragments and the fracture is stable after reduction, apply compression, one column at a time:
